Superfood Powder Can Jar Bottle Filling Machine

Basic Info

Model NO.	DH-Q2
Filling Principle	Pressure
Packaging Container Lifting Structure	Pneumatic Lifting
Structure	Linear
Packaging	Bottle
Packaging Material	Metal, Plastic
Product Name	Automatic Auger Filling Machine
Function	Powder Filling
Material	304 Stainless Steel
Warranty	1 Year
Transport Package	Seaworthy Plywood Case
Specification	1-5000g
Trademark	DAHEPACK
Origin	Shanghai, China
HS Code	84224000
Production Capacity	100 Sets/Year

Product Description

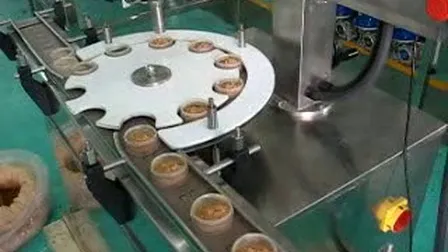

Superfood powder Packing and Filling machineThe machine detail discription:Themachne is a new designed that we make it According to the old turnplate feeding one one side . This Auger filling within double lines has main and assist fillers . The orginanated feeding system can keep the high Proecision and Avoid the cleaning of the turntable. it can do the accurate weighting and filling work, and also could conbined with other machines to buildup a whole can -packing production line. This machine ould be used in filling mold powder ,albumne powder, condiment,dextrose,rice flour,cocoa powder,solid drink and so on.The working steps :Containerin--Container go up-Vibration-Filling-Vibration-Vibration-Weight response-second filling-weight checking and working-Container Out This Powder Filling Machine is a compact model used for filling all kinds of powder into bottles/cans/jars/Tins etc The machine is suitable for dry syrup, talcum, spices powder, flour Free Flowing Powders Chemicals, Pharmaceutical Powers, Food & Beverages, Cosmetics powder, Pesticides Powder,Cocoa Powder packing, Protein powder packing etc . Feature:1 Servo MOTOR2 Single otor and Air Control Can's transmit .3 Filling control By servo Motor.4 Suction system Machine to make the equipment Clean5 Rejection device for the Jar or Bottle(Weight deviation)6 Filling Height adjustable7 Split Hopper8 PLC and Contact Screen Control9 The machine Enclosed By stainless steel10 Container transmit by rotary11 Speical Device for stop Leaky

Model	DH-Q2-100	DH-Q2-160
Container size	20-100mm; H 15-50mm	30-160mm;H 50-260mm
filling weight	1-500g	10-5000g
Filling speed	20-50 bottles /min	20-40 bottles per min
filling accuracy	less than 100g ≤ ±2% Between 100-500g,≤ ± 1%	less than 500g, ≤ ±1% More than 500g,≤ ±0.5%
Power supply	3P AV 208-415V 50/60HZ	3P AV 208-415V 50/60HZ
Air supply	6kg/cm2 0.05m3/min	6kg/cm2 0.05m3/min
Total power	2.04kw	2.51kw
OVerall size	1800*830*2080mm	2000*1070*2420mm
Hopper Volume	35L	50L

WHY CHOOSE US
For the Machine Quality control , we do like this:
1 Our standard Electricity Brand For our Machine is Top BrandSuch as Siemens, SEW brand....2 We make the electrical according to the CE standard.3 All The machine is full welding and polish .4 The Servo Motor control the filling . The filling weight is more accuracy
5 The machine has the Container Vibration and lift system
6 Over than 20 Year Experience
7 Get Many Patent in our Packing Field

For more Convent for the customer we do like this :
1 we offer the Complete Packing Line for Customer2 Offer the Layout for the machine and design the layout according to your workshop size3 we are the directly Manufacture .we have our team to support your production purpose . more dependable.

For Reduce the Cost of the machine we do like this :1 One machine can pack non free flow Material and free flow material 2 High Filling accuracy make customer get Perfect Packing .3 Filling weight can change over.4 The Hopper can be Quick disconnected.5 The Electricity Brand Can Be different Standard
